Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element

Name: Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element
Brand: Hunan Keensen Technology Co., Ltd.
SKU: ES-8040UFR
Price: 138.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Keensen

Certification: ISO9001, NSF61, Halal

Model Number: ES-8040UFR

Payment & Shipping Terms

Minimum Order Quantity: It Depends, Trial order or Urgent order not limited by MOQ

Packaging Details: CARTON + PALLET

Delivery Time: 3-15 work days

Payment Terms: L/C, T/T

Supply Ability: 100000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                Low Fouling Reverse Osmosis Membrane Element, ES-8040UFR Reverse Osmosis Membrane Element


Membrane Type:	Reverse Osmosis Membrane	Membrane Material:	Polyamide
Membrane Size:	8 Inches	Operating Pressure:	150 Psi
Ph Range:	2-11	Salt Rejection:	99.7%
Flow Rate:	10500GPD	Quantity Per Pallet:	28 Pieces
Quantity Per 20/40ft Container:	400/880 Pieces	Test Solution:	2000ppm NaCl

Membrane Type:	Reverse Osmosis Membrane
Membrane Material:	Polyamide
Membrane Size:	8 Inches
Operating Pressure:	150 Psi
Ph Range:	2-11
Salt Rejection:	99.7%
Flow Rate:	10500GPD
Quantity Per Pallet:	28 Pieces
Quantity Per 20/40ft Container:	400/880 Pieces
Test Solution:	2000ppm NaCl

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element

Description
The ES-8040UFR is a newly developed ultra-low pressure, low-fouling membrane element designed to enhance system efficiency and reduce energy consumption. It improves the membrane's resistance to fouling, ensuring reliable performance over time. This membrane is ideal for a wide range of applications, including industrial process water treatment, municipal wastewater treatment, surface water treatment, and groundwater treatment.

Features

Energy Saving and Fouling Resistant
Offers high salt rejection at Ultra Low Pressure
Improved end cap can bear higher pressure drop.
Improved Feed Spacer and Thicker Channel

1.Specifications

Model

Active Area

ft2(m2)

Feed Spacer Thickness

(mil)

Permeate Flow Rate GPD

(m3/D)

Stabilized Salt Rejection

(%)

Minimum Salt Rejection(%)

ES-8040UFR

400(37.2)

10500(39.7)

99.6

99.5

2.Standard Test Conditions

Solution

Temperature

(℃)

Operating Pressure

psi(MPa)

Recovery

(%)

2000mg/L NaCl

7.5-8.0

150(1.03)

Individual flow rate may vary±15%

3.Element Dimensions and Operating Limits

Model	Length		Diameter		Permeate Tube inner Diameter
Model	inch	mm	inch	mm	inch	mm
8040	40	1016	7.9	201	1.12	28.5

Maximum Operating Pressure	600psi(4.13MPa)
Operating Temperature Range	0-45℃
Maximum Water Flow Rate	17.0m3/h(8040),3.6 m3/h (4040)
Maximum Feed Silt Density Index (SDI15)	5.0
Free Chlorine Tolerance	0.1mg/L
pH Range,Continuous Operation	3-10
pH Range,Short-Term Cleaning	1-13
Maximum Element Pressure Drop	15psi(0.1MPa)

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element 0

Professional Export Packing Method.

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element 1

Leading Inspection Equipment from USA

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element 2

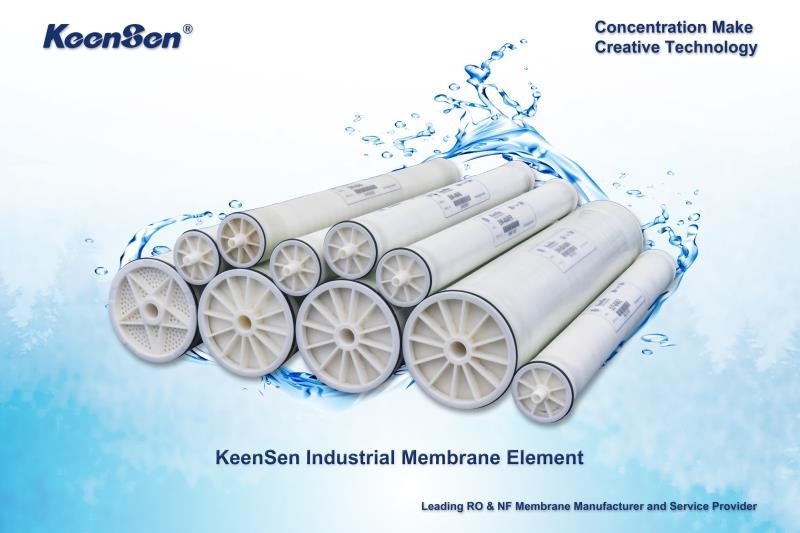

Membranes Picture

Enhanced ES-8040UFR Ultra-Low Pressure Low Fouling Reverse Osmosis Membrane Element 3
